Slurry Erosion Wear Tester
  • Slurry Erosion Wear Tester
  • Slurry Erosion Wear Tester

    • MSH

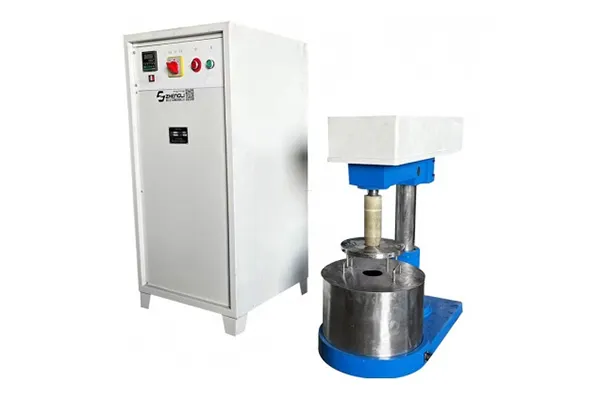

    Slurry Erosion Wear Tester

    Slurry-pot erosion wear testing machine for determining erosive properties of metal materials in corrosive conditions

    Slurry erosion wear tester is a slurry-pot type tribometer designed to evaluate the erosive and corrosive properties of metallic materials in aggressive environments. During testing, samples rotate within a slurry containing free-floating abrasives. Wear occurs through repeated particle impacts, while corrosive media in the slurry accelerates material degradation. This combination enables reliable assessment of both erosion and corrosion wear performance.

    Request a Quote
    Specifications
    Specimen size Pin specimen: Ø8×53mm (effective length)
    Ring specimen: Ø50×10mm
    Rotation direction of spindle Clockwise
    Spindle speed (four levels) 334r/min
    673r/min
    1470r/min
    2961r/min
    Data reproducibility Dispersion ≤5%
    Applications

    Used to measure the resistance of metallic materials against high-speed erosion and corrosion in environments such as weak acids, weak alkalis, and mortar. It provides essential simulation and evaluation for industries requiring durable materials, including exploration drilling, pipeline transportation, and valve manufacturing.
    Related Wear Testing Machine
    Get in Touch

    Typical setups include pin-on-disc, ring-on-ring, and ring-on-disc sample contact forms.

    Tests may include dry friction, wet friction, and abrasive wear comparisons under varying loads, speeds, and temperature conditions.

    The M-2000A friction and wear testing machine is recommended. It simulates multiple working conditions such as sliding friction, rolling friction, combined friction, and intermittent motion. Equipped with an adjustable speed system, it enables evaluation of friction coefficients and wear mechanisms from very low to high speeds, making it ideal for both research and industrial applications.

    The MPX-2000 friction and wear testing machine is the optimal choice. Designed as a vertical-axis pin-on-disc system, it supports pin-on-disc, ring-on-ring, and ring-on-disc configurations. It measures wear resistance and friction coefficient under controlled loads and speeds. When fitted with an oil cup, it also supports wet friction tests, making it applicable for evaluating lubricants such as hydraulic oils and engine oils.

    The MSH slurry erosion wear tester is designed for such conditions. Using a free-abrasive method, it exposes rotating samples to impacts from abrasive particles within slurry while also incorporating corrosive media. This allows simulation of wear and erosion in environments with weak acids, weak alkalis, and mortar.
