    • MPX-2000A

    Friction and Wear Testing Machine

    Tribometer for wear testing of metal & non-metal materials or lubrication properties of lubricant and grease through methods of pin-on-disc, ring-on-ring, and ring-on-disc

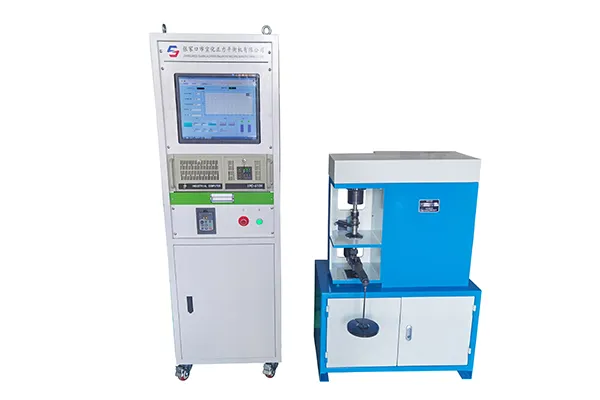

    The vertical-axis pin-on-disc tribometer is designed for testing metals and non-metals, including plastics and nylon. It supports pin-on-disc, ring-on-ring, and ring-on-disc configurations, performing end-face sliding friction tests under selected load and speed conditions to measure both wear resistance and friction coefficients.

    When equipped with the supplied oil cup, it also supports wet friction testing, making it suitable for evaluating the performance of lubricants such as hydraulic oils, engine oils, and gear oils. Its design makes it a reliable wear testing equipment for both tribology teaching and scientific research.

    Request a Quote
    Specifications
    Test force 0-2000 N, accuracy 1%
    Rotation speed of upper specimen 0-6000 r/min (variable speed control)
    Friction torque 0-2N·m, accuracy 1%
    Specimen diameter 27mm
    Specimen contact Pin-on-disc, ring-on-ring
    Friction pair Pin-on-disc, ring-on-ring, ring-on-disc
    Friction method Dry friction, wet friction, abrasive wear testing
    Time control range 1s-9999min
    Speed control rang 0-unlimited
    Frequency 1 cycle per second

    *Curve recording and data processing are carried out by computer, enabling measurement, display, and processing of all parameters. Real-time curves of time versus friction coefficient and friction torque variations can be displayed.

    Applications

    Can be used in the evaluation of lubricants, metals, plastics, coatings, rubbers, ceramics, and composite materials. It meets the requirements of the petrochemical industry for research and testing of advanced lubricants, while also providing accurate simulation capabilities for new materials and technology development. With a variable-speed system, it allows testing at both very low and high speeds for flexible laboratory and industrial applications.
    Related Wear Testing Machine
    Get in Touch

    Typical setups include pin-on-disc, ring-on-ring, and ring-on-disc sample contact forms.

    Tests may include dry friction, wet friction, and abrasive wear comparisons under varying loads, speeds, and temperature conditions.

    The M-2000A friction and wear testing machine is recommended. It simulates multiple working conditions such as sliding friction, rolling friction, combined friction, and intermittent motion. Equipped with an adjustable speed system, it enables evaluation of friction coefficients and wear mechanisms from very low to high speeds, making it ideal for both research and industrial applications.

    The MPX-2000 friction and wear testing machine is the optimal choice. Designed as a vertical-axis pin-on-disc system, it supports pin-on-disc, ring-on-ring, and ring-on-disc configurations. It measures wear resistance and friction coefficient under controlled loads and speeds. When fitted with an oil cup, it also supports wet friction tests, making it applicable for evaluating lubricants such as hydraulic oils and engine oils.

    The MSH slurry erosion wear tester is designed for such conditions. Using a free-abrasive method, it exposes rotating samples to impacts from abrasive particles within slurry while also incorporating corrosive media. This allows simulation of wear and erosion in environments with weak acids, weak alkalis, and mortar.
