Friction and Wear Testing Machine
  • Friction and Wear Testing Machine
  • Friction and Wear Testing Machine

    • MG-2000A

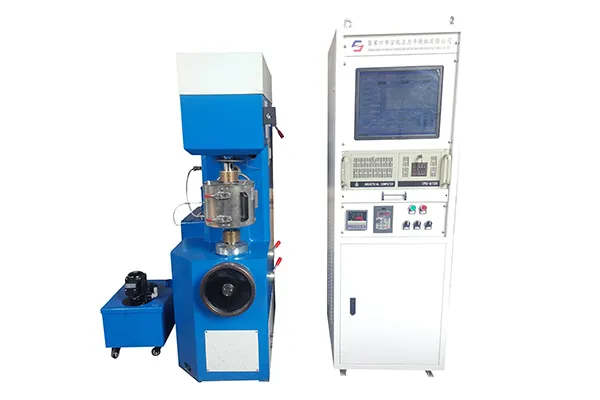

    Friction and Wear Testing Machine

    Tribometer for evaluating the wear behavior of materials or lubrication properties of lubricant and grease through methods of pin-on-disc, ring-on-ring, and ring-on-disc

    The friction and war testing machine evaluates the wear behavior and friction properties of materials and lubricants through pin-on-disc, ring-on-ring, and ring-on-disc configurations. It performs end-face sliding friction tests under selected load, speed, and temperature conditions, making it suitable for both metallic and non-metallic materials.

    In addition to dry contact tests, it also supports lubricated friction testing with liquid media, providing more realistic simulation of operating environments for oils and greases. The wear tester is equipped with an advanced microcomputer control system, allowing direct display of test data such as friction work, friction coefficient, rotational speed, and cycle count. Test results can also be printed for documentation and analysis.

    Request a Quote
    Specifications
    Test force 2000N, accuracy 1%
    Spindle speed 0-2400r/min
    Friction torque 10N·m, accuracy 1%
    Motor (variable speed control) YP2-132, 4kW
    Heating temperature Room temperature to 1000℃, grade 1 accuracy
    Friction pair Pin-on-disc, ring-on-ring, ring-on-disc
    Friction method Dry friction, wet friction
    Frequency 1 cycle per second
    Time control range 1s-9999min
    Speed control rang 0-unlimited
    Weight Main machine: approx. 700kg
    Control cabinet: approx. 100kg
    Applications
    • Suitable for evaluating the friction and wear performance of a wide range of materials, including lubricants, metals, plastics, coatings, rubbers, and ceramics.
    • It is widely applied in the petrochemical industry, supporting research and testing of high-grade hydraulic oils, engine oils, and gear oils. Beyond traditional petroleum applications, the friction and wear testing machine also plays an important role in the development of new materials and technologies, offering precise simulation and evaluation of wear behavior under controlled conditions.
