Friction and Wear Testing Machine
  • Friction and Wear Testing Machine
  • Friction and Wear Testing Machine

    • M-2000A

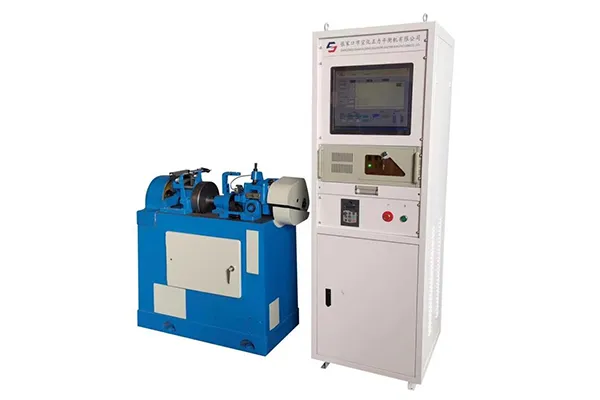

    Friction and Wear Testing Machine

    Tribometer for wear testing of various metals and non-metals by simulating sliding friction, rolling friction, and combination of sliding and rolling contacts

    The tribometer is designed for wear testing of various metals and non-metals by simulating sliding friction, rolling friction, combination of sliding and rolling contacts, and intermittent motion tests. It can be used with metallic and non-metallic samples, as well as lubricants, to determine wear resistance, friction mechanisms, and friction coefficients under controlled test conditions.

    Request a Quote
    Specifications
    Test force 0-2000N, accuracy ±2%
    Rotation speed of upper specimen 360/180 r/min
    Rotation speed of lower specimen 400/200 r/min
    Specimen size (diameter×thickness) (30-50)×10mm
    Friction torque 0-15N.m, accuracy ±2%
    Test and measurement system LabVIEW graphical programming
    Time control range 1s-9999min
    Friction method Dry friction, wet friction, abrasive wear testing
    Frequency 1 cycle per second
    Speed control rang 0-unlimited
    Ambient temperature Room temperature to 70℃
    Applications

    Widely applied in testing the friction and wear performance of lubricants, metals, plastics, coatings, rubbers, and ceramics. Operating under specific contact pressures, it can simulate rolling, sliding, or combined movements. With its adjustable speed system, the friction and wear testing machine allows evaluation across a wide range of speeds, from very low to high, making it suitable for both laboratory research and industrial applications.

    Testing Standards

    Test results conform to the following standards:

    • GB/T 12444.2-90: Metal wear test method, MM-type wear test
    • GB/T 3960-83: Test method for sliding friction coefficient of plastics
    Related Wear Testing Machine
    Get in Touch

    Typical setups include pin-on-disc, ring-on-ring, and ring-on-disc sample contact forms.

    Tests may include dry friction, wet friction, and abrasive wear comparisons under varying loads, speeds, and temperature conditions.

    The M-2000A friction and wear testing machine is recommended. It simulates multiple working conditions such as sliding friction, rolling friction, combined friction, and intermittent motion. Equipped with an adjustable speed system, it enables evaluation of friction coefficients and wear mechanisms from very low to high speeds, making it ideal for both research and industrial applications.

    The MPX-2000 friction and wear testing machine is the optimal choice. Designed as a vertical-axis pin-on-disc system, it supports pin-on-disc, ring-on-ring, and ring-on-disc configurations. It measures wear resistance and friction coefficient under controlled loads and speeds. When fitted with an oil cup, it also supports wet friction tests, making it applicable for evaluating lubricants such as hydraulic oils and engine oils.

    The MSH slurry erosion wear tester is designed for such conditions. Using a free-abrasive method, it exposes rotating samples to impacts from abrasive particles within slurry while also incorporating corrosive media. This allows simulation of wear and erosion in environments with weak acids, weak alkalis, and mortar.
