Friction and Wear Testing Machine
  • Friction and Wear Testing Machine
  • Friction and Wear Testing Machine
  • Friction and Wear Testing Machine

    • M-2000

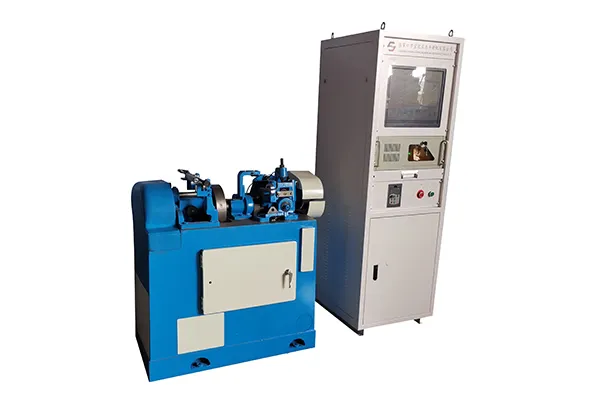

    Friction and Wear Testing Machine

    Tribometer for testing the wear resistance of various metals and non-metals under testing conditions of sliding friction, rolling friction, and combined friction

    The tribometer is used for testing the wear resistance of metals and non-metals under different friction states, including sliding friction, rolling friction, combined sliding-rolling, and intermittent contact. It is suitable for evaluating the durability and friction mechanisms of a wide range of materials such as nylon, plastics, and other engineering materials.

    Request a Quote
    Specifications
    Max. test force 2000N
    Rotation speed of upper specimen 360/180 r/min
    Rotation speed of lower specimen 400/200 r/min
    Specimen size (diameter×thickness) (30-50)×10mm
    Friction torque 0-15N.m
    Applications

    Commonly used to evaluate the friction and wear properties of lubricants, metals, plastics, coatings, rubbers, and ceramics. Operating under specific contact pressures, it can simulate rolling, sliding, or combined rolling-sliding motion. With its adjustable speed system, the wear tester supports testing at both very low and high speeds, making it suitable for laboratory research as well as industrial applications.
    Related Wear Testing Machine
    Get in Touch

    Typical setups include pin-on-disc, ring-on-ring, and ring-on-disc sample contact forms.

    Tests may include dry friction, wet friction, and abrasive wear comparisons under varying loads, speeds, and temperature conditions.

    The M-2000A friction and wear testing machine is recommended. It simulates multiple working conditions such as sliding friction, rolling friction, combined friction, and intermittent motion. Equipped with an adjustable speed system, it enables evaluation of friction coefficients and wear mechanisms from very low to high speeds, making it ideal for both research and industrial applications.

    The MPX-2000 friction and wear testing machine is the optimal choice. Designed as a vertical-axis pin-on-disc system, it supports pin-on-disc, ring-on-ring, and ring-on-disc configurations. It measures wear resistance and friction coefficient under controlled loads and speeds. When fitted with an oil cup, it also supports wet friction tests, making it applicable for evaluating lubricants such as hydraulic oils and engine oils.

    The MSH slurry erosion wear tester is designed for such conditions. Using a free-abrasive method, it exposes rotating samples to impacts from abrasive particles within slurry while also incorporating corrosive media. This allows simulation of wear and erosion in environments with weak acids, weak alkalis, and mortar.
