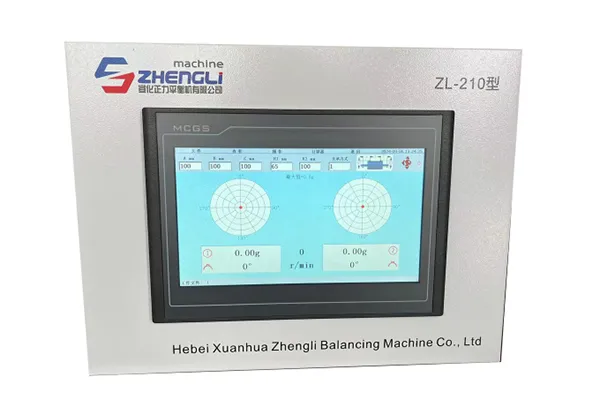

ZL-210 Dynamic Balancing Measuring System (Touch Screen)
  • ZL-210 Dynamic Balancing Measuring System (Touch Screen)
  • ZL-210 Dynamic Balancing Measuring System (Touch Screen)
  • ZL-210 Dynamic Balancing Measuring System (Touch Screen)

    • ZL-210

    Dynamic Balancing Measuring System

    Balancing machine measurement device with touch screen

    The measuring device adopts an advanced embedded industrial computer control platform, delivering high automation, precise balancing accuracy, wide adaptability, and a clear, intuitive display. Equipped with a touch screen, its ease of operation and reliability make it an ideal balancing measuring solution for factories, research institutes, and defense applications.

    The system measures vibration signals from rotating components to detect unbalance caused by uneven mass distribution. Based on this measurement, corrections can be applied by adding or removing weight on the rotor, eliminating the imbalance. This process effectively reduces vibration and noise, while extending the service life of the balancing equipment.

    Request a Quote
    Specifications
    Applications Hard-bearing and soft-bearing balancing machines
    Balancing speed 100-20000r/min
    Min. achievable residual unbalance (eMar) 0.2gmm/kg
    Unbalance reduction ratio (URR) per cycle >95%
    Ambient temperature 0-60°C
    Ambient humidity 5%-95%
    Power supply 187-253V, 45-60Hz
    Features
    • NTEL8051 chip delivers strong anti-interference performance with safe and reliable operation
    • Automatic speed lock ensures accurate measurement by automatically stabilizing speed readings
    • Offers six support configurations, including internal support, external support, left overhung, and right overhung, to accommodate different rotor types
    • Utilizes an automatic programmable amplifier and high-performance filters for precise signal processing
    • Can be equipped with a mini printer for immediate test result output
    Related Balancing Machine
    Get in Touch
    Explore Balancing Equipment for Your Industry

    Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

    Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

    Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.

    Balancing machines can be configured with belt drive, universal joint drive, or self-drive. Belt drive is usually chosen for smaller rotors that require accuracy, while universal joint drive delivers higher torque and is safer for heavier parts. Self-drive designs are used when the workpiece can rotate under its own power.

    The frequency depends on usage intensity and operating environment. In most cases, calibration is recommended to calibrate balancing machines once a year, but for machines running under heavy workloads or harsher conditions, more frequent checks are advised to maintain precision.
