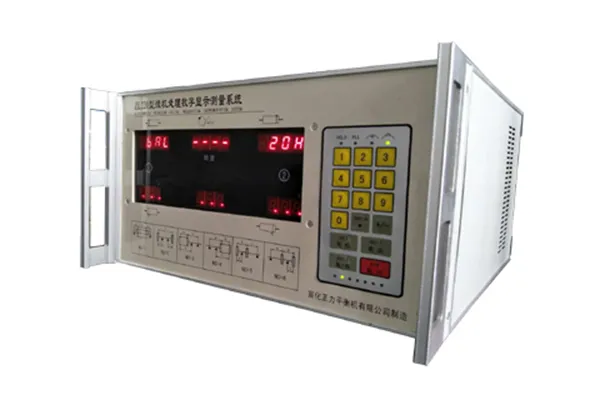

ZL-220 Dynamic Balancing Measuring System (Digital Display)
  • ZL-220 Dynamic Balancing Measuring System (Digital Display)
  • ZL-220 Dynamic Balancing Measuring System (Digital Display)
  • ZL-220 Dynamic Balancing Measuring System (Digital Display)

    • ZL-220

    Dynamic Balancing Measuring System

    Digital measuring system for dynamic balancing

    The digital measuring system is a high-performance dynamic balancing measuring solution developed with independent intellectual property rights. Designed for wide adaptability, it delivers high measurement accuracy, reliable operation, and low maintenance costs, making it a dependable choice for modern balancing machines.

    With its broad compatibility and precision capabilities, the measuring system is suitable for diverse balancing applications across industries, ensuring efficiency and cost-effectiveness in both production and maintenance environments.

    Request a Quote
    Specifications
    Applications Hard-bearing and soft-bearing balancing machines
    Balancing speed 300-8000r/min
    Min. achievable residual unbalance (eMar) 0.5gmm/kg
    Unbalance reduction ratio (URR) per cycle >90%
    Ambient temperature -5℃-35℃
    Ambient humidity ≤85% (25℃)
    Power supply 220V ±10% 45-60HZ
    Features
    • LED digital display provides clear and better indication of unbalance values and angles
    • NTEL8051 chip delivers strong anti-interference performance with safe and reliable operation
    • Automatic speed lock ensures accurate measurement by automatically stabilizing speed readings
    • Offers six support configurations, including internal support, external support, left overhung, and right overhung, to accommodate different rotor types
    • Utilizes an automatic programmable amplifier and high-performance filters for precise signal processing
    • Can be equipped with a mini printer for immediate test result output
    Related Balancing Machine
    Get in Touch
    Explore Balancing Equipment for Your Industry

    Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

    Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

    Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.

    The frequency depends on usage intensity and operating environment. In most cases, calibration is recommended to calibrate balancing machines once a year, but for machines running under heavy workloads or harsher conditions, more frequent checks are advised to maintain precision.

    Accuracy may be affected by operator handling, incorrect markings, or mismatched correction points. Technical issues such as damaged sensors, loose connections, or electronic failures can also play a role. Regular calibration and proper setup help keep results consistent.
