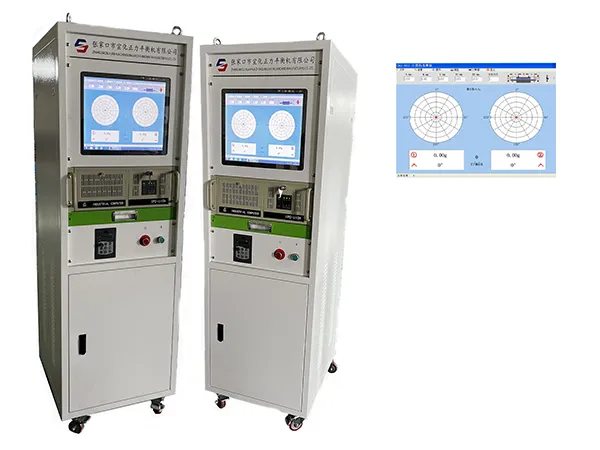

ZL-211 Dynamic Balancing Measuring System (Control Cabinet)
  • ZL-211 Dynamic Balancing Measuring System (Control Cabinet)
  • ZL-211 Dynamic Balancing Measuring System (Control Cabinet)
  • ZL-211 Dynamic Balancing Measuring System (Control Cabinet)

    • ZL-211

    Dynamic Balancing Measuring System

    Industrial control cabinet for dynamic balancing

    The measuring system is an advanced industrial control cabinet for dynamic balancing, equipped with a powerful industrial PC control platform. It delivers a high degree of automation, excellent balancing accuracy, broad applicability, and clear, reliable display performance. With intuitive operation and strong compatibility with external office equipment, it simplifies result printing, data storage, and balance grade reporting.

    Request a Quote
    Specifications
    Applications Hard-bearing and soft-bearing balancing machines
    Balancing speed 180-10000r/min
    Min. achievable residual unbalance (eMar) 0.2gmm/kg
    Unbalance reduction ratio (URR) per cycle >95%
    Ambient temperature 0-60°C
    Ambient humidity 5%-95%
    Power supply 220V ±10% 45-60HZ
    Features
    • Independent control cabinet with a large display, operated via mouse and keyboard, and equipped with a printer
    • Supports customized report templates according to customer requirements, with instant result printing available
    • Integrated system diagnostics for balancing machine operating status, including serial port recognition
    • User-friendly operation with mouse and keyboard, designed for seamless integration with modern office equipment
    Related Balancing Machine
    Get in Touch
    Explore Balancing Equipment for Your Industry

    Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

    Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

    Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.

    Balancing machines can be configured with belt drive, universal joint drive, or self-drive. Belt drive is usually chosen for smaller rotors that require accuracy, while universal joint drive delivers higher torque and is safer for heavier parts. Self-drive designs are used when the workpiece can rotate under its own power.

    Accuracy may be affected by operator handling, incorrect markings, or mismatched correction points. Technical issues such as damaged sensors, loose connections, or electronic failures can also play a role. Regular calibration and proper setup help keep results consistent.
