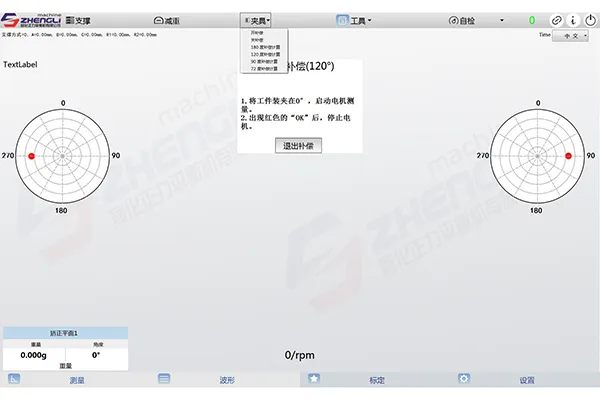

ZL-310 Dynamic Balancing Measuring System (Touch Screen)
  • ZL-310 Dynamic Balancing Measuring System (Touch Screen)
  • ZL-310 Dynamic Balancing Measuring System (Touch Screen)
  • ZL-310 Dynamic Balancing Measuring System (Touch Screen)

    • ZL-310

    Dynamic Balancing Measuring System

    Electronic measuring system with touch screen for dynamic balancing

    The electronic balancing measuring system is designed for both single-plane and dual-plane dynamic balancing and is compatible with a wide range of soft and hard-bearing balancing machines. Reliable and intuitive calibration instructions ensure that it always measures and displays data correctly. It supports easy integration with different sensors, including vibration sensors and piezoelectric sensors, making it versatile across various testing setups.

    Equipped with a 14-inch LCD touch screen and running on a Linux operating system, the balancing measuring system provides fast performance, high reliability, and strong dust and vibration-resistant protection. Its rugged design makes it suitable for diverse industrial environments, while its broad data compatibility ensures convenient output through standard interfaces.

    Request a Quote
    Specifications
    Applications Hard-bearing and soft-bearing balancing machines
    Balancing speed 100-20000r/min
    Min. achievable residual unbalance (eMar) 0.2gmm/kg
    Unbalance reduction ratio (URR) per cycle >95%
    Ambient temperature 0-60°C
    Ambient humidity 5%-95%
    Power supply 187-253V, 45-60Hz
    Features
    • Flexible measurement modes, including dynamic and static balancing, weight addition/removal, and forward/reverse rotation, customizable to user needs
    • High measurement accuracy with multi-calibration coefficient combinations, automatic sensitivity adjustment, seamless range switching, dual hardware/software filtering, and data compression for stable results
    • Customizable units for balance amount and angle, with real-time conversion to meet varied customer requirements
    • Multiple display units available, including g, g.mm, g.cm, and oz.in, covering different testing standards and application needs
    Related Balancing Machine
    Get in Touch
    Explore Balancing Equipment for Your Industry

    Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

    Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

    The frequency depends on usage intensity and operating environment. In most cases, calibration is recommended to calibrate balancing machines once a year, but for machines running under heavy workloads or harsher conditions, more frequent checks are advised to maintain precision.

    Balancing machines can be configured with belt drive, universal joint drive, or self-drive. Belt drive is usually chosen for smaller rotors that require accuracy, while universal joint drive delivers higher torque and is safer for heavier parts. Self-drive designs are used when the workpiece can rotate under its own power.

    Accuracy may be affected by operator handling, incorrect markings, or mismatched correction points. Technical issues such as damaged sensors, loose connections, or electronic failures can also play a role. Regular calibration and proper setup help keep results consistent.
