ZL-213 Dynamic Balancing Measuring System
  • ZL-213 Dynamic Balancing Measuring System
  • ZL-213 Dynamic Balancing Measuring System
  • ZL-213 Dynamic Balancing Measuring System

    • ZL-213

    Dynamic Balancing Measuring System

    Electronic measuring system for single-plane and two-plane balancing

    The electronic measuring system is a high-precision solution designed for both single-plane and dual-plane dynamic balancing machines. Capable of handling speeds up to 40,000 R/min, it delivers fast, accurate measurements and adapts easily to a wide range of balancing machines, including both soft- and hard-bearing types.

    This system offers seamless compatibility with various sensors, such as vibration sensors and piezoelectric sensors, ensuring flexible integration into different testing setups. With its wide applicability, efficiency, and strong data versatility, the balancing measuring system is well-suited for demanding industrial balancing requirements. Standard interfaces also enable smooth data output and connectivity.

    Request a Quote
    Specifications
    Model ZL-213
    Duration of balancing 4-10s
    Display range 1μg-999kg
    Balancing method Possible to select between single plane and two planes
    Balancing speed 200-40000r/min
    Unbalance resolution 0-3 decimal points
    Min. achievable residual unbalance (eMar) ≤10g.mm/kg
    Unbalance reduction ratio (URR) ≥90%
    Features
    • Supports balancing tests at speeds up to 40,000 R/min
    • Precision measurement with accuracy down to 10 mg
    • Compatible with single-plane and dual-plane balancing machines
    • Unlimited storage for measurement records

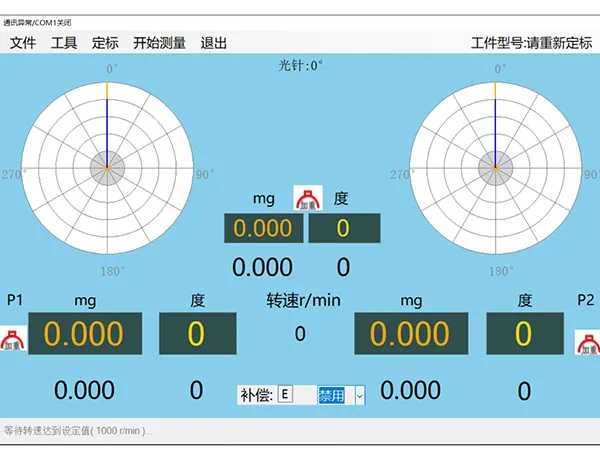

    • Real-time signal waveform display from vibration sensors
    • Indexing function for controlled balancing operations
    • Synchronous display for static balance measurements
    Related Balancing Machine
    Get in Touch
    Explore Balancing Equipment for Your Industry

    Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

    The frequency depends on usage intensity and operating environment. In most cases, calibration is recommended to calibrate balancing machines once a year, but for machines running under heavy workloads or harsher conditions, more frequent checks are advised to maintain precision.

    Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.

    Balancing machines can be configured with belt drive, universal joint drive, or self-drive. Belt drive is usually chosen for smaller rotors that require accuracy, while universal joint drive delivers higher torque and is safer for heavier parts. Self-drive designs are used when the workpiece can rotate under its own power.

    Accuracy may be affected by operator handling, incorrect markings, or mismatched correction points. Technical issues such as damaged sensors, loose connections, or electronic failures can also play a role. Regular calibration and proper setup help keep results consistent.
