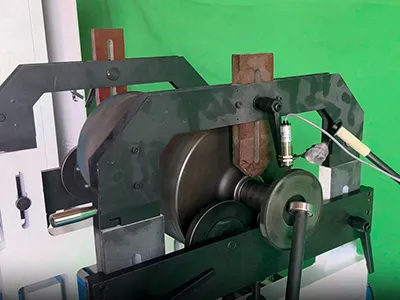

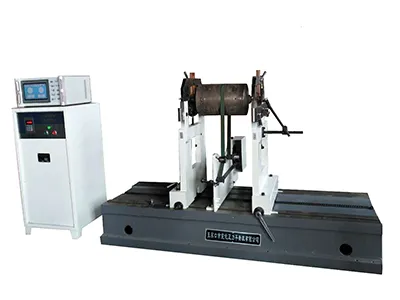

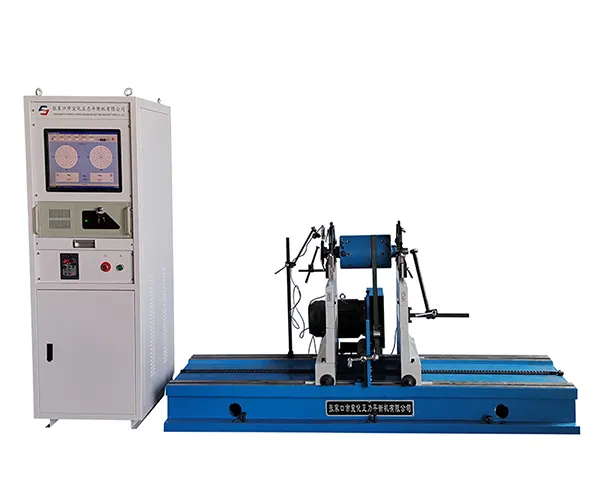

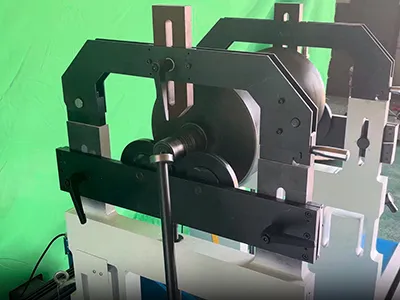

YYQ-1000 Hard-Bearing Balancing Machine (Belt Drive)
  • YYQ-1000 Hard-Bearing Balancing Machine (Belt Drive)
  • YYQ-1000 Hard-Bearing Balancing Machine (Belt Drive)
  • YYQ-1000 Hard-Bearing Balancing Machine (Belt Drive)

    • YYQ-1000

    Horizontal Balancing Machine

    Hard-bearing balancing machine (belt drive) for workpiece with diameter of up to 1600mm and weight of 30-1000kg

    • Belt drive hard-bearing balancing machine designed for medium and large rotors
    • Eliminates residual unbalance from universal joints and coupling fixtures
    • Ensures that balancing accuracy reflects the true condition of the workpiece
    • Capable of improving overall balance precision and reliability
    Applications

    Ideal for balancing medium-sized motor rotors, fan impellers, and machine tool spindles. It is also used for long roller parts in paper-making and printing machinery.

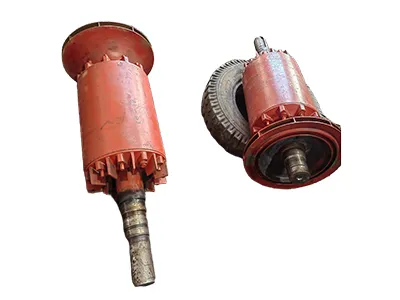

    • Medium-size motor rotors balancingMedium-size motor rotors balancing

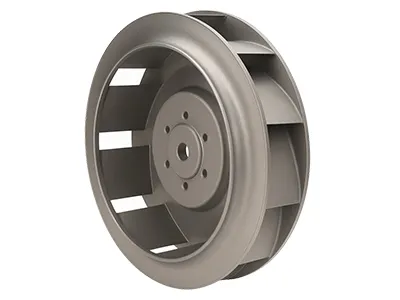

    • Medium-size fan impellers balancingMedium-size fan impellers balancing
    Request a Quote
    Specifications
    Workpiece weight 30-1000kg
    Max. workpiece diameter Ø1600mm
    Journal diameter of workpiece Standard roller carriage Ø15-Ø120mm
    Optional roller carriage Ø120-Ø240mm
    Distance between two bearing supports 200-2400mm (or based on negotiation)
    Min. achievable residual unbalance (eMar) 0.5g.mm/kg
    Balancing speed 50-1000r/min
    Unbalance reduction ratio (URR) ≥90%
    Examples of Workpieces Our Machines Can Balance
    • Standard rotorsStandard rotors

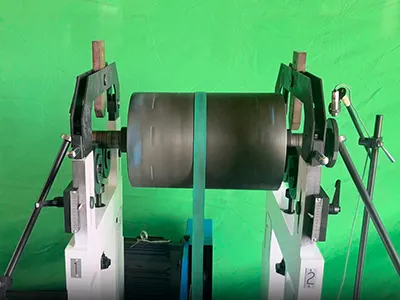

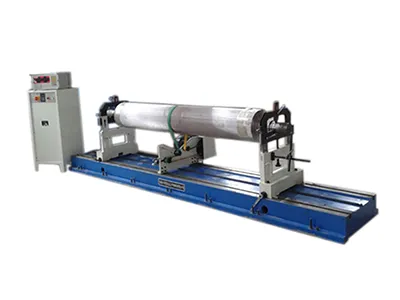

    • RollersRollers
    Features & Advantages
    • Operators can enter the distance and radius of the two correction planes before starting the balancing machine, this allows system to calculate unbalance values accurately once the rotor begins to rotate.

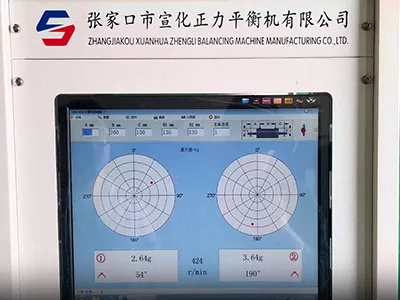

    • Both unbalance size and angle are displayed clearly during the test, to ensure the results are easy to interpret.
    • Supplied with advanced measuring systems, including the ZL-220 embedded dynamic balancing measuring system and the ZL-210 dynamic balancing measuring system (industrial PC type), offering flexibility for different applications.
    • YYQ-1000 Hard-Bearing Balancing Machine (Belt Drive)
    • YYQ-1000 Hard-Bearing Balancing Machine (Belt Drive)
    • YYQ-1000 Hard-Bearing Balancing Machine (Belt Drive)
    • YYQ-1000 Hard-Bearing Balancing Machine (Belt Drive)
    Related Products
    See more products
    Get in Touch
    Explore Balancing Equipment for Your Industry

    Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

    Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

    Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.

    The frequency depends on usage intensity and operating environment. In most cases, calibration is recommended to calibrate balancing machines once a year, but for machines running under heavy workloads or harsher conditions, more frequent checks are advised to maintain precision.
