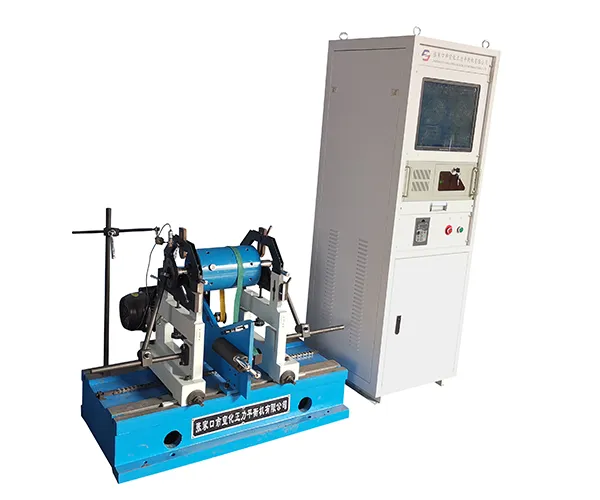

YYQ-50 Hard-Bearing Balancing Machine (Belt Drive)
  • YYQ-50 Hard-Bearing Balancing Machine (Belt Drive)
  • YYQ-50 Hard-Bearing Balancing Machine (Belt Drive)

    • YYQ-50

    Horizontal Balancing Machine

    Hard-bearing balancing machine (belt drive) for workpiece with diameter of up to 900mm and weight of 1-50kg

    • Belt drive horizontal hard-bearing balancing machine designed for versatile use with different rotating parts
    • Supports workpieces up to 900 mm in diameter and 50 kg in weight
    • Balancing speed can be adjusted to match the actual operating speed of the component, improving test reliability
    • Smooth and safe operation without interference from universal joint drive
    • Reduced impact of shaft bending in long rotors, ensuring higher measurement accuracy
    Applications

    Suitable for dynamic balancing of motor rotors, crankshafts, centrifuge rotors, and small to medium blower rotors. It is also used to machine tool spindles, textile machinery parts, internal combustion engines, and other rotating components in electronics and machinery.

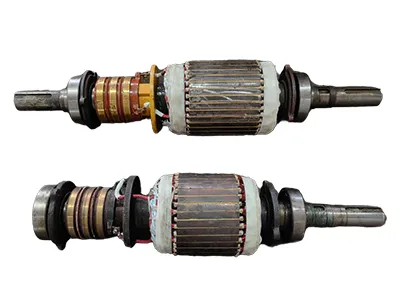

    • Motor rotors balancingMotor rotors balancing

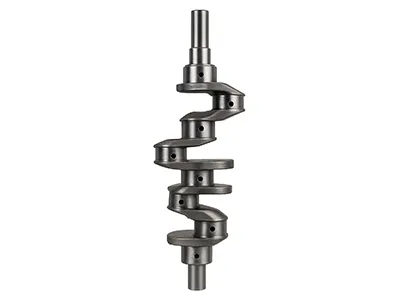

    • Crankshafts balancingCrankshafts balancing

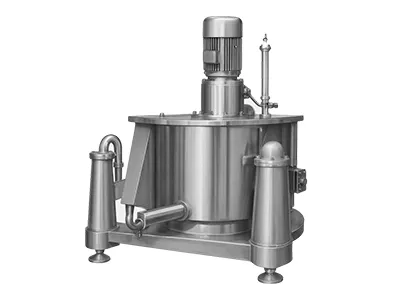

    • Centrifuge rotors balancingCentrifuge rotors balancing
    Request a Quote
    Specifications
    Workpiece weight 1-50kg
    Max. workpiece diameter Ø900mm
    Journal diameter of workpiece Ø10-Ø80mm
    Distance between two bearing supports 110-800mm
    Balancing speed 350-3000r/min
    Min. achievable residual unbalance (eMar) 0.5g.mm/kg
    Unbalance reduction ratio (URR) ≥90%
    Features
    • Supports single-plane and dual-plane balancing for different types of rotors.
    • The interface is easy to follow, so balance tests can be carried out without complexity.
    • Fixture eccentricity compensation helps improve the accuracy of results.
    • Unbalance values and angles are displayed both numerically and in polar coordinates, so results can be interpreted quickly.
    • Measurement results can be saved for later review, printed when needed, and included in customized reports.
    • Users can choose from different methods to add or remove weight during correction.
    • Balance accuracy can be set in advance, with automatic calculation during operation.
    • Reports can be generated in customized formats when required.
    • The balancing machine identifies its operating status and verifies communication ports to ensure proper function.
    • Mouse and keyboard operation makes it easy to connect with other office equipment.
    Examples of Workpieces Our Machines Can Balance

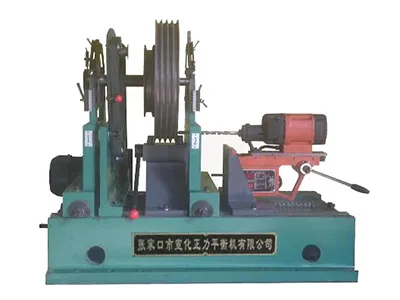

    • Pulley balancingPulley balancing

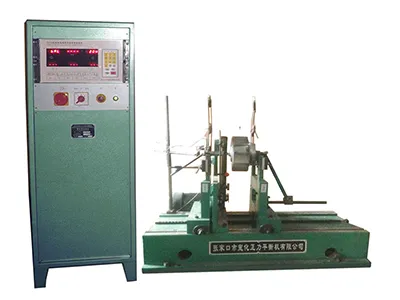

    • Standard rotorsStandard rotors

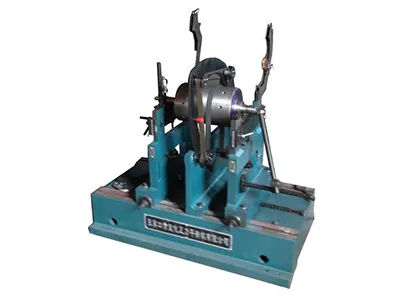

    • Small fan impellersSmall fan impellers

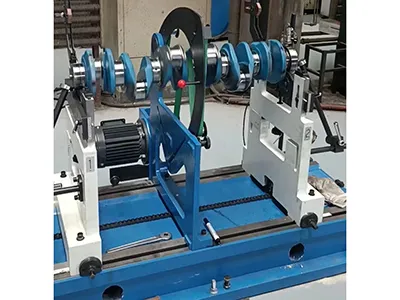

    • CrankshaftsCrankshafts

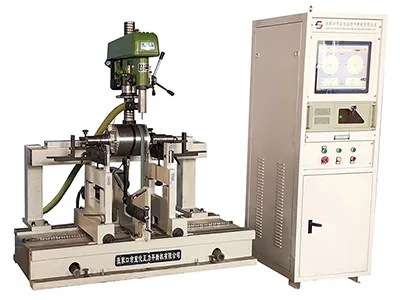

    • Motor rotorsMotor rotors
    Related Products
    See more products
    Get in Touch
    Explore Balancing Equipment for Your Industry

    The frequency depends on usage intensity and operating environment. In most cases, calibration is recommended to calibrate balancing machines once a year, but for machines running under heavy workloads or harsher conditions, more frequent checks are advised to maintain precision.

    Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

    Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.

    Balancing machines can be configured with belt drive, universal joint drive, or self-drive. Belt drive is usually chosen for smaller rotors that require accuracy, while universal joint drive delivers higher torque and is safer for heavier parts. Self-drive designs are used when the workpiece can rotate under its own power.

    Every wear tester goes through careful calibration and inspection in line with standards like ISO 9001. This step makes sure the measuring accuracy is verified and consistent before the tester is shipped out to clients.
