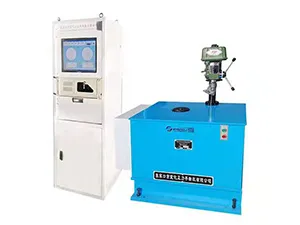

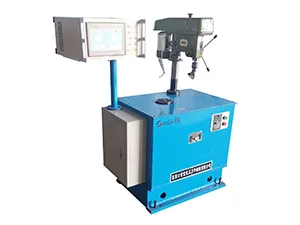

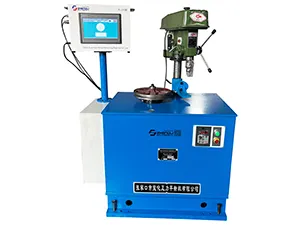

Vertical balancing machines are designed for disc-shaped components, to carry out unbalance measurement and convenient correction. With a durable spindle and a load capacity of up to 200 kg, they feature long-term reliability and stable performance. Unbalance correction can be done directly on the machine through methods such as drilling, milling, or adding counterweights.

Features
  • The rotor is mounted vertically on the spindle, keeping the force direction consistent with gravity and ensuring higher measurement accuracy.
  • Different correction methods can be configured, including automatic drilling, milling, or adding counterweights.
  • Equipped with the ZL-220 digital display measuring system, which uses large-scale integrated circuits for high sensitivity, fast response, and reliable performance.
How can we help you?

We are here to support your industrial balancing and wear testing needs

Contact Us
Explore Balancing Equipment for Your Industry

Vertical balancing models hold the workpiece upright, which is a better fit for disc-shaped components with a concentrated center of gravity, like brake discs or flywheels. Horizontal balancing machines hold the workpiece lengthwise and are commonly used for longer shafts, spindles, or motor rotors.

Standard vertical balancing machines can balance workpieces that range from around 80 mm up to 700 mm in diameter, with weights ranging from a few hundred grams to about 200 kg. For workpieces with sizes that aren't within this range, we can provide customized balancing solutions.

Depending on the workpiece and customer needs, unbalance can be corrected by drilling, milling, or adding weight with welded or attached counterweights. Both manual and automatic options are available.
