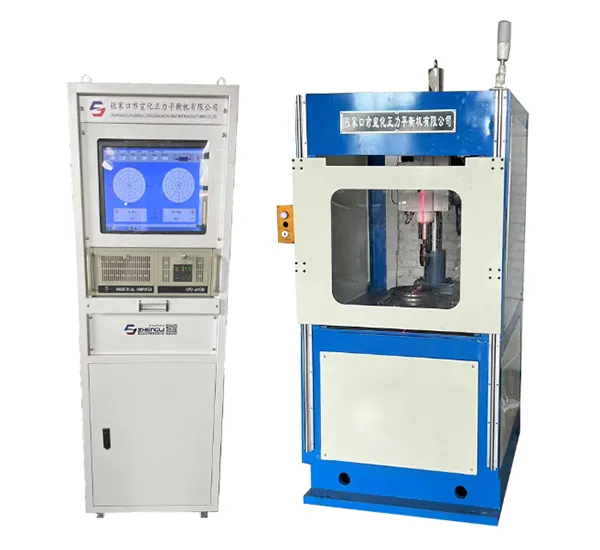

    Automatic Vertical Balancing Machine

    Hard-bearing balancing machine for workpiece with diameter of up to 360mm and maximum weight of 20kg

    Automatic vertical balancing machines are hard-bearing balancing systems designed for disc-shaped components. They are commonly used for parts such as rotors, brake discs, flywheels, and pulleys. By removing material, these hard-bearing balancing machines correct unbalance with residual values as low as 1 mg. These balancing machines are easy to operate, and one person can manage several units at the same time with just simple start and stop commands.

    Applications

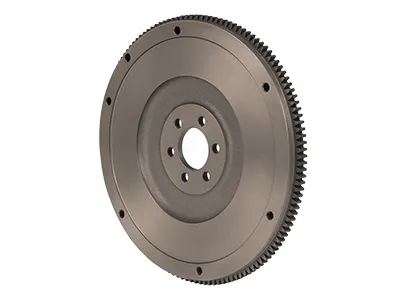

    Suitable for measuring and correcting unbalance in disc-shaped parts such as brake discs, pulleys, brake drums, clutches, flywheels, and similar components.

    • Brake disc balancingBrake disc balancing

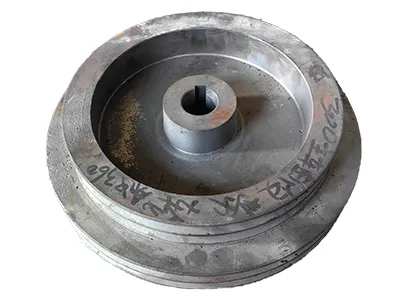

    • Pulley balancingPulley balancing

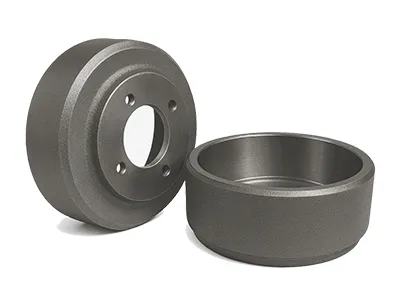

    • Brake drum balancingBrake drum balancing
    Request a Quote
    Specifications
    Model YLDZD-40
    Workpiece weight 20kg
    Max. workpiece diameter 36cm
    Min. achievable residual unbalance (eMar) 1mg
    Unbalance reduction ratio (URR) ≥90%
    Unbalance compensation method Drilling
    Balancing machine type Hard-bearing balancing machine
    Balancing speed 300-800rpm
    Power supply TN-S (50Hz)
    Air pressure 0.4-0.6MPa
    Air consumption 6L/min
    Max. workpiece thickness 350mm
    Protection Phase loss,overload,air pressure
    Industrial dust collection Automatic slag removal
    Features
    • Can be equipped with different unbalance correction methods, including drilling, milling, or turning. The setup is flexible and can be adjusted according to the structure of the workpiece and the level of accuracy required, covering everything from rough balancing to high-precision correction.
    • A single-station design allows measurement, correction, and re-checking to be completed in one step, improving efficiency and ensuring reliable results.
    • When material removal is carried out at a dedicated station, overall balancing efficiency is significantly higher, up to 70% more compared with manual processes.
    Related Balancing Machine
    Get in Touch
    Explore Balancing Equipment for Your Industry

    Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

    Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

    Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.

    Balancing machines can be configured with belt drive, universal joint drive, or self-drive. Belt drive is usually chosen for smaller rotors that require accuracy, while universal joint drive delivers higher torque and is safer for heavier parts. Self-drive designs are used when the workpiece can rotate under its own power.

    Accuracy may be affected by operator handling, incorrect markings, or mismatched correction points. Technical issues such as damaged sensors, loose connections, or electronic failures can also play a role. Regular calibration and proper setup help keep results consistent.
