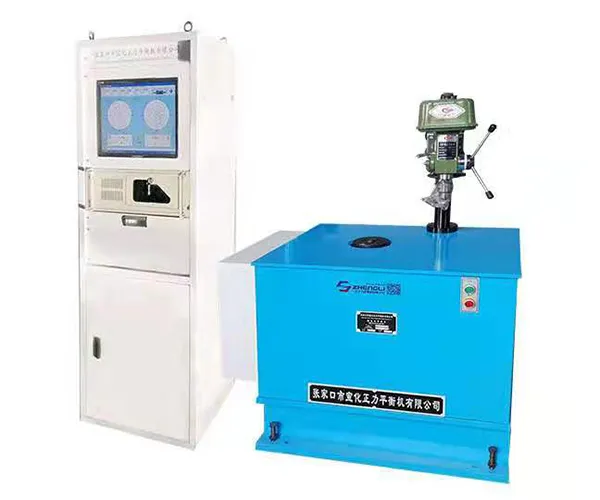

YLD-100 Hard-Bearing Balancing Machine
  • YLD-100 Hard-Bearing Balancing Machine
  • YLD-100 Hard-Bearing Balancing Machine
  • YLD-100 Hard-Bearing Balancing Machine

    • YLD-100

    Vertical Balancing Machine

    Hard-bearing balancing machine for workpiece with diameter of up to 500mm and weight of 10-100kg

    Designed to balance medium to heavy workpieces of up to 100kg with precision and stability. Available in three setups: standard for general use, A type with a bench drill for material removal, and B type with a bench drill and dust collector for cleaner operation. These vertical balancing machines provide consistent accuracy and reliable performance, suitable for automotive and rotor production lines.

    Applications

    Suitable for dynamic balancing of automotive and motorcycle parts, especially disc-shaped components that require stable and precise adjustment.

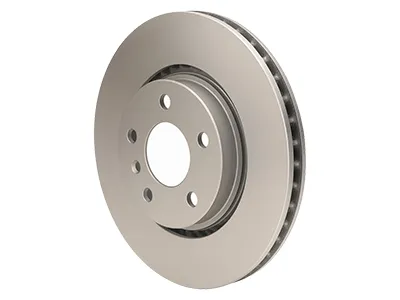

    • Clutch pressure plates balancingClutch pressure plates balancing

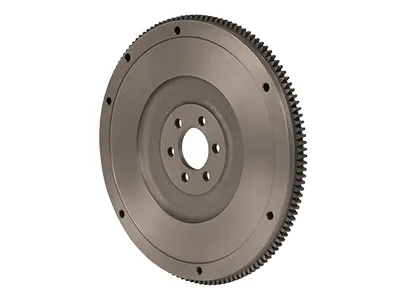

    • Flywheels balancingFlywheels balancing

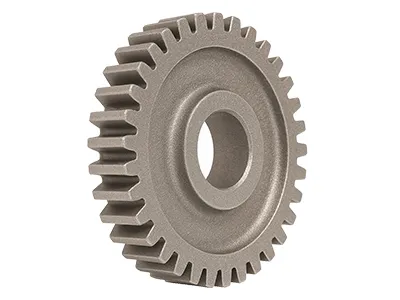

    • Gears balancingGears balancing

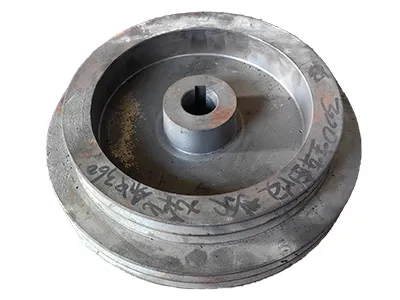

    • Pulley balancingPulley balancing
    Request a Quote
    Specifications
    Workpiece weight (with clamping tools) 10-100kg
    Max. workpiece diameter 500mm
    Max. workpiece thickness 150mm
    Max. initial unbalance of workpiece < 2500g.cm
    Couple unbalance interference ratio ≤1/2000
    Balancing speed 600r/min
    Min. achievable residual unbalance (eMar) ≤1g.mm/kg
    Unbalance reduction ratio (URR) ≥90%
    Features
    • Equipped with an advanced digital measuring system using large-scale integrated circuits
    • High measurement sensitivity with quick results
    • Within five seconds, both unbalance value and phase are displayed directly in grams and degrees
    • Allows switching between light and heavy rotors even when stopped.
    • Automatic memory function for easier operation
    Related Balancing Machine
    Get in Touch
    Explore Balancing Equipment for Your Industry

    Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

    Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

    Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.

    Balancing machines can be configured with belt drive, universal joint drive, or self-drive. Belt drive is usually chosen for smaller rotors that require accuracy, while universal joint drive delivers higher torque and is safer for heavier parts. Self-drive designs are used when the workpiece can rotate under its own power.

    Accuracy may be affected by operator handling, incorrect markings, or mismatched correction points. Technical issues such as damaged sensors, loose connections, or electronic failures can also play a role. Regular calibration and proper setup help keep results consistent.
