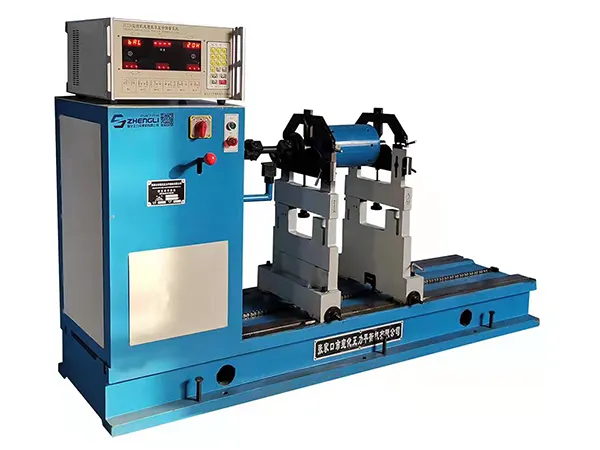

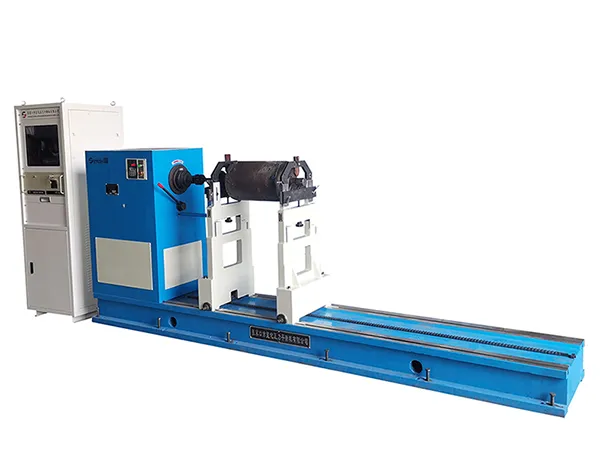

YYW-300 Hard-Bearing Balancing Machine (Universal Joint Drive)
  • YYW-300 Hard-Bearing Balancing Machine (Universal Joint Drive)
  • YYW-300 Hard-Bearing Balancing Machine (Universal Joint Drive)
  • YYW-300 Hard-Bearing Balancing Machine (Universal Joint Drive)
  • YYW-300 Hard-Bearing Balancing Machine (Universal Joint Drive)

    • YYW-300

    Horizontal Balancing Machine

    Hard-bearing balancing machine (universal joint drive) for workpiece with diameter of up to 1250mm and weight of 10-300kg

    • Horizontal hard-bearing balancing machine for general-purpose use
    • Structure keeps the operating speed safely below resonance
    • Simple to operate, with permanent calibration for consistent accuracy
    • Universal joint drive offers high torque with quick start and stop times
    • Available with a digital display unit or an industrial PC measuring system
    Applications

    Widely used for balancing small to medium rotating parts, including motor rotors, blowers, impellers, cylinders, rollers, and agricultural machinery.

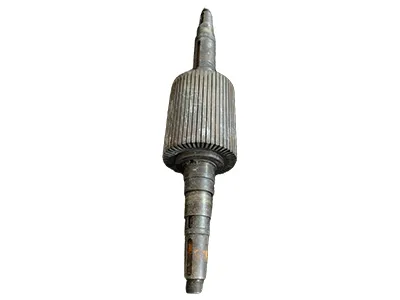

    • Motor rotors balancingMotor rotors balancing

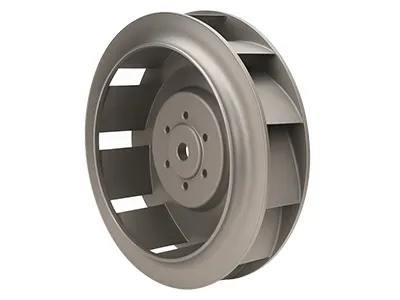

    • Centrifugal impellers balancingCentrifugal impellers balancing
    Request a Quote
    Specifications
    Workpiece weight 10-300kg
    Max. workpiece diameter Ø1250mm
    Distance between two bearing supports 60-1700mm (customizable)
    Journal diameter of workpiece Ø10-Ø90 mm (standard) Ø90-Ø180mm (optionally expandable)
    Balancing speed Stepless speed control
    Min. achievable residual unbalance (eMar) 1g.mm/kg
    Unbalance reduction ratio (URR) 95%
    Features
    • Equipped with ZHENGLi measuring system, supporting both dynamic and static balancing. It offers up to 10 support methods, customizable options for adding or removing weight, forward and reverse rotation, and unit conversion for balance values and angles.
    • Works with either a universal joint or a gearbox drive, allowing multiple balancing speeds or stepless speed control.
    • Roller supports use a dual-point design instead of single suspension, giving higher load capacity.
    • The spindle end is fitted with a clear angle dial and infrared laser positioning, making it easier to locate points on large-diameter workpieces.
    • The spindle also features a telescopic universal joint structure for convenient connection with oversized components.
    Examples of Workpieces Our Machines Can Balance

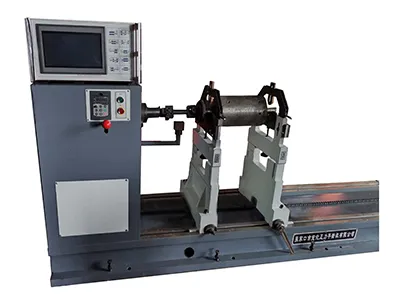

    • Standard rotorsStandard rotors

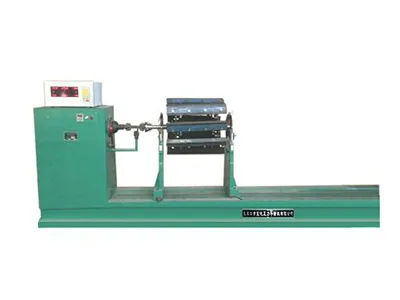

    • Silage harvester rotorsSilage harvester rotors

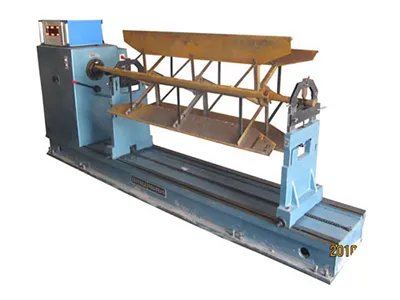

    • Rotors for corn threshing machinesRotors for corn threshing machines

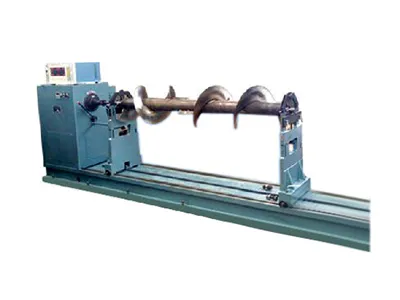

    • Augers for plastic machinery, packing machines, and balersAugers for plastic machinery, packing machines, and balers
    • Fan impellersFan impellers

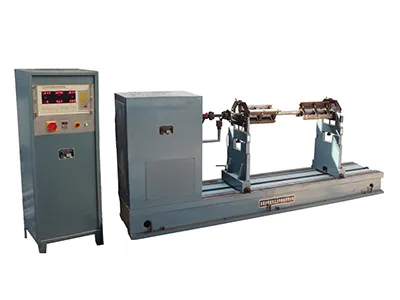

    • Corn harvester rotorsCorn harvester rotors

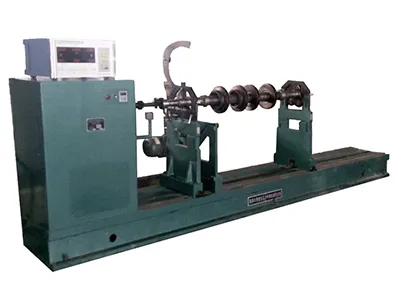

    • Multistage pump rotorsMultistage pump rotors

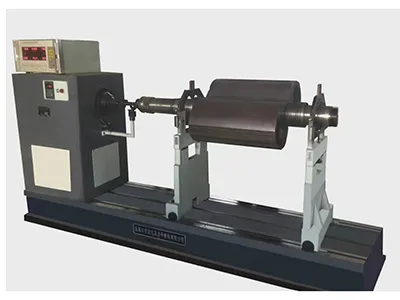

    • Roots blower rotorsRoots blower rotors
    Related Products
    See more products
    Get in Touch
    Explore Balancing Equipment for Your Industry

    Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

    Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

    Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.

    Balancing machines can be configured with belt drive, universal joint drive, or self-drive. Belt drive is usually chosen for smaller rotors that require accuracy, while universal joint drive delivers higher torque and is safer for heavier parts. Self-drive designs are used when the workpiece can rotate under its own power.

    Accuracy may be affected by operator handling, incorrect markings, or mismatched correction points. Technical issues such as damaged sensors, loose connections, or electronic failures can also play a role. Regular calibration and proper setup help keep results consistent.
