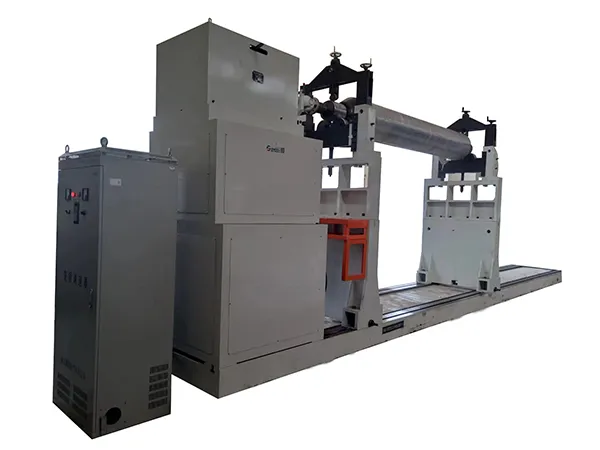

YYW-30000 Hard-Bearing Balancing Machine (Universal Joint Drive)
  • YYW-30000 Hard-Bearing Balancing Machine (Universal Joint Drive)
  • YYW-30000 Hard-Bearing Balancing Machine (Universal Joint Drive)

    • YYW-30000

    Horizontal Balancing Machine

    Hard-bearing balancing machine (universal joint drive) for workpiece with diameter of up to 4000mm and weight of 2000-30000kg

    • Balances workpieces up to 30,000 kg
    • Supports diameters to 4,000 mm and lengths to 8,000 mm
    • Built for extra-large industrial components
    • Stable operation with precise measurement
    Applications

    Suitable for dynamic balancing of various fan impellers, including double-suction designs, as well as motor rotors, separator rotors, large generator rotors, turbines, mining machinery, rollers, fans, and printing machinery.

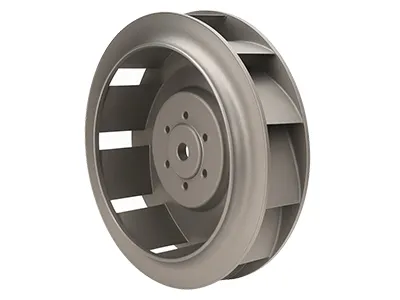

    • Fan impellers balancingFan impellers balancing

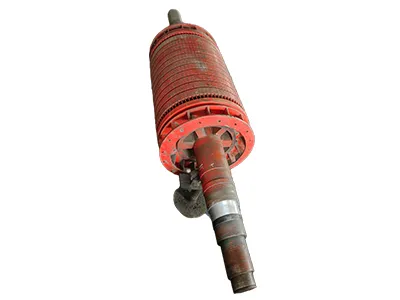

    • Motor rotors balancingMotor rotors balancing

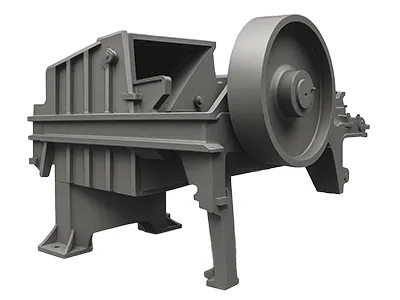

    • Mining machinery components balancingMining machinery components balancing

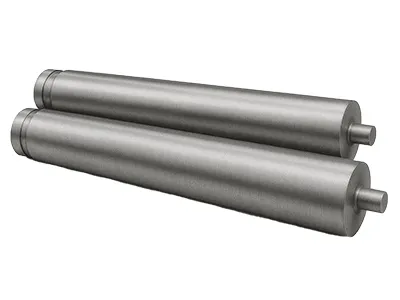

    • Rollers balancingRollers balancing
    Request a Quote
    Specifications
    Workpiece weight 2000-30000kg
    Max. workpiece diameter 4000mm
    Journal diameter of workpiece Ø80-400mm
    Min. distance between two bearings 400mm
    Max. distance from coupling end to right bearing support 8000mm (or customizable)
    Balancing speed (5-step speed control) Variable speed control (max. speed)
    Step 1: 208r/min
    Step 2: 350r/min
    Step 3: 588r/min
    Step 4: 966r/min
    Step 5: 1440r/min
    Motor power 90kW
    Min. achievable residual unbalance (eMar) ≤1g.mm/kg
    Unbalance reduction ratio (URR) ≥90%
    Power supply 3phase/380V/50HZ
    Torque of universal joint shaft 7000N·m (standard configuration)
    Power of variable-frequency speed drive 90kW
    Electronic measuring system ZL-210 dynamic balancing measuring system (touch screen) with cabinet
    Electrical control cabinet Free-standing control cabinet
    Roller carriage bearing SKF
    Gearbox model QJ805
    Features
    • Designed by engineers with long-standing experience in balancing machine development, bringing familiarity with a wide range of rotor applications.
    • Backed by over 30 years of manufacturing practice, which has led to more refined designs and reliable solutions.
    • Driven by a three-phase asynchronous motor with frequency converter for smooth stepless speed control.
    • Gearbox uses the QJ series based on German ZF technology, delivering strong torque and stable performance.
    • Optional measuring systems include the ZL-220 dynamic balancing measuring system (digital display type) and the ZL-210 dynamic balancing measuring system.
    Related Products
    See more products
    Get in Touch
    Explore Balancing Equipment for Your Industry

    Every wear tester goes through careful calibration and inspection in line with standards like ISO 9001. This step makes sure the measuring accuracy is verified and consistent before the tester is shipped out to clients.

    Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

    Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.

    Balancing machines can be configured with belt drive, universal joint drive, or self-drive. Belt drive is usually chosen for smaller rotors that require accuracy, while universal joint drive delivers higher torque and is safer for heavier parts. Self-drive designs are used when the workpiece can rotate under its own power.

    Accuracy may be affected by operator handling, incorrect markings, or mismatched correction points. Technical issues such as damaged sensors, loose connections, or electronic failures can also play a role. Regular calibration and proper setup help keep results consistent.
