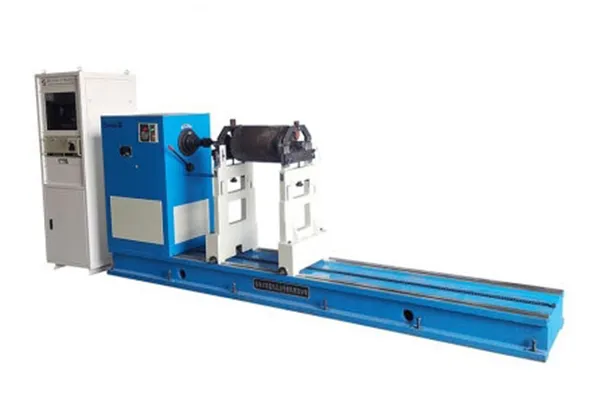

    Fan Impeller Balancing Machine

    Hard-bearing balancing machine for dynamic balancing of fan impellers and blowers

    The YFW-1000 is a hard-bearing balancing machine designed for medium-size fan manufacturers. With a rotational diameter capacity of up to 1600 mm, it is particularly well-suited for the dynamic balancing of fan impellers. Beyond fan applications, it can also be used for other high-speed rotating components such as crusher rotors, motor rotors, and crankshafts.

    Request a Quote
    Specifications
    Workpiece weight 30-1000kg
    Accidental overload of each support 600kg
    Max. workpiece diameter Ø1600mm
    Journal diameter of workpiece 15-120mm
    Distance between two bearing supports 2000mm
    Balancing speed (stepless speed control) 180-1200rpm (or based on negotiation)
    Min. achievable residual unbalance (eMar) 1g.mm/kg
    Unbalance reduction ratio (URR) ≥90%
    Features
    • Configurable with either the ZL-220 embedded measurement unit or the advanced ZL-2 industrial balancing system.
    • The ZL-2 system integrates the latest USB data acquisition card with an industrial PC or all-in-one computer, ensuring high stability and strong anti-interference capability.
    • Software developed with NI LabVIEW virtual instrument technology provides an intuitive, user-friendly interface, adaptable to different operator levels and testing scenarios.
    • Expandable software architecture allows customization to meet specific user requirements.
    • Equipped with an advanced photoelectric coupler for reference signal input and a concealed piezoelectric sensor for vibration signal detection, enabling precise and reliable test results.
    Related Balancing Machine
    Get in Touch
    Explore Balancing Equipment for Your Industry

    Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

    Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

    Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.

    Balancing machines can be configured with belt drive, universal joint drive, or self-drive. Belt drive is usually chosen for smaller rotors that require accuracy, while universal joint drive delivers higher torque and is safer for heavier parts. Self-drive designs are used when the workpiece can rotate under its own power.

    Accuracy may be affected by operator handling, incorrect markings, or mismatched correction points. Technical issues such as damaged sensors, loose connections, or electronic failures can also play a role. Regular calibration and proper setup help keep results consistent.
