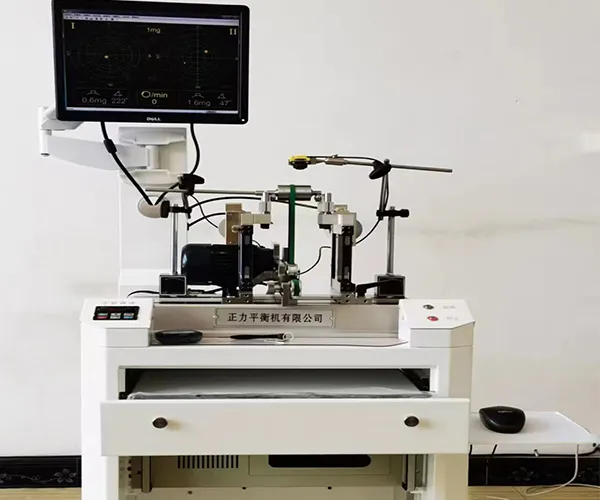

RYQ-10 Soft-Bearing Balancing Machine (Belt Drive)

RYQ-10

Horizontal Balancing Machine

Soft-bearing balancing machine (belt drive) for workpieces with diameter of up to 600mm and maxium weight of 25kg

  • Soft-bearing horizontal balancing machine with belt drive, suitable for rotors up to 600 mm in diameter and 25 kg in weight.
  • Reduces rotor unbalance to improve product quality, resulting in lower vibration and noise during operation.
  • Achieves up to 95% reduction in unbalance, with residual unbalance as low as 0.2 g·mm/kg.
Applications

Mainly used for dynamic balancing tests of DC fans, brushless motors, and various types of rotors.

Request a Quote
Specifications
Workpiece diameter 2-60cm
Workpiece weight 1-25000g
Journal diameter of workpiece 0.8-30mm
Unbalance reduction ratio (URR) 95% (max)
Min. achievable residual unbalance (eMar) 0.2g.mm/kg
Features
  • Based on the soft-bearing balancing principle, the machine offers higher measurement accuracy.
  • It can be used for single-piece balancing or for balancing complete assemblies directly without disassembly.
  • Rotor changeover is simple, operation is straightforward, and the modular structure adapts to different applications.
Other Products
Related Products
See more products
Get in Touch
Explore Balancing Equipment for Your Industry

Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.
