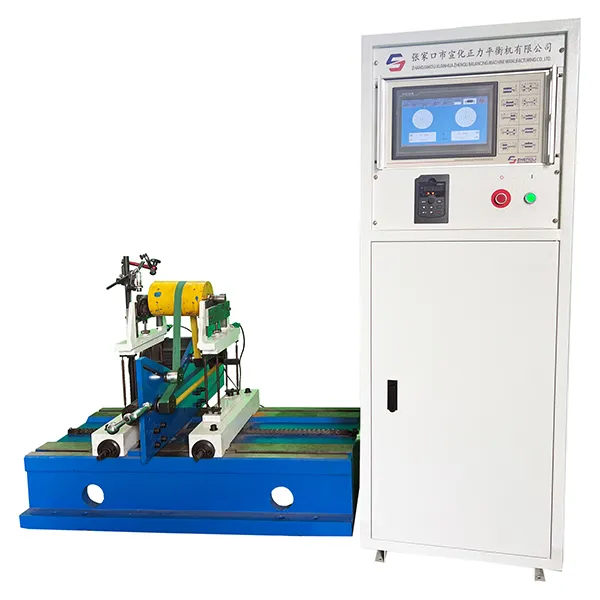

RYQ-160 Soft-Bearing Balancing Machine (Belt Drive)

RYQ-160

Horizontal Balancing Machine

Soft-bearing balancing machine (belt drive) for workpieces with diameter of up to 1080mm and weight of 3-160kg

  • Soft-bearing horizontal balancing machine with belt drive, suitable for rotors up to 1080 mm in diameter and 160 kg in weight
  • Suitable for different types of rotating components
  • Before operation, users simply enter the size and radius parameters of the correction planes. Once the rotor is started, the system displays both the unbalance amount and its phase
Applications

Uue dynamic balancing of motor rotors, fan impellers, turbocharger rotors, crankshafts, machine tool spindles, and long roller parts used in paper-making and printing machinery.

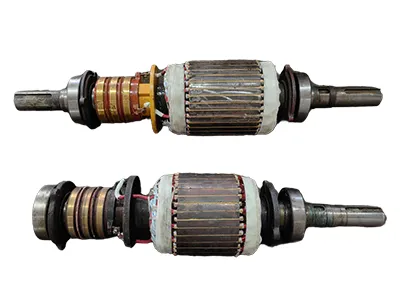

  • Motor rotors balancingMotor rotors balancing

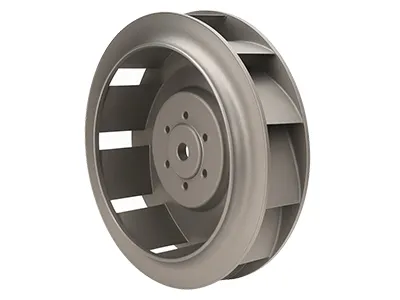

  • Fan impellers balancingFan impellers balancing
Request a Quote
Specifications
Workpiece weight 3-160kg
Max. workpiece diameter Ø1080mm
Journal diameter of workpiece Ø10-Ø90mm
Distance between two bearing supports 110-1800mm (or based on negotiation)
Balancing speed 250-3000r/min
Min. achievable residual unbalance (eMar) 0.2g.mm/kg
Unbalance reduction ratio (URR) ≥90%
Features
  • Operated through a menu interface that allows user-friendly interaction.
  • Built with an industrial control computer design, ensuring safety and reliable performance even in harsh production environments.
  • The circuits for amplification, filtering, and calculation are built in modular form, which makes maintenance easier and quicker.
  • Fully digital circuit operation provides high precision, and program control leaves room for future upgrades.
  • The unbalance value is displayed directly in grams (g).
Related Products
See more products
Get in Touch
Explore Balancing Equipment for Your Industry

Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

Wear testing machines can work with different types of materials, including metals, plastics, rubber, coatings, ceramics, and composites. Thanks to wear testers versatility, they are commonly used in industries such automotive, aerospace, electronics, general machinery, and building materials.

The frequency depends on usage intensity and operating environment. In most cases, calibration is recommended to calibrate balancing machines once a year, but for machines running under heavy workloads or harsher conditions, more frequent checks are advised to maintain precision.

When clients purchase either a balancing or wear testing machine, they gain access to comprehensive services that cover spare parts supply, operator training, on-site guidance, fast repairs, and upgrade options. These services are meant to minimize downtime and keep the balancing and wear testing equipment running smoothly all year around.
