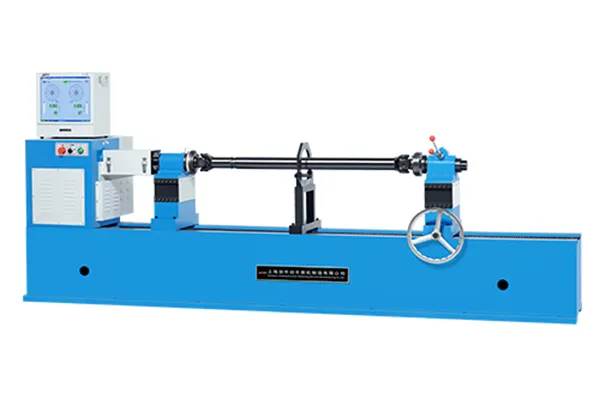

Drive Shaft Balancing Machine

RCD-100

Drive Shaft Balancing Machine

Soft-bearing balancing machine for dynamic balancing of drive shafts

The RCD-100 is a soft-bearing balancing machine designed for the dynamic balancing of long-shaft rotors such as drive shafts, couplings, and flanged shafts used in the automotive and construction machinery industries. With its flexible support structure, the drive shaft balancing machine simulates the rotor’s actual vibration characteristics during operation, allowing for higher-precision residual unbalance control. It supports a maximum workpiece weight of 100 kg and a support length of up to 2400 mm, making it particularly suitable for medium-length, asymmetrical, or highly eccentric shafts.

Request a Quote
Specifications
Weight of drive shaft 3-100kg
Max. length of drive shaft 2400mm
Sensitivity 5g.cm
Balancing speed 1700/2400/3400/4800 r/min
Power supply 380V, 50Hz, 3phase
Motor power 2.2/3kW
Related Balancing Machine
Get in Touch
Explore Balancing Equipment for Your Industry

Balancing machines are instruments that indicate if a rotating component, such as a rotor or fan, rotates in an unbalanced manner. If the component wobbles or vibrates a lot, the balancing machine will point out the imbalance so it can be corrected. The importance of balancing is directly related to the longevity of the rotating component and how well the component functions.

Soft-bearing machines use flexible supports, making them sensitive to very small vibrations and suitable for lighter or smaller parts that require high accuracy. Hard-bearing balancing machines, on the other hand, use more rigid supports, so they are more suitable for larger and heavier rotors. Hard bearing balancing equipment may be less sensitive to tiny vibrations, but they are easier to set up and give reliable results across a wider range of workpieces.

Balancing machines are used to rotating parts such as motor rotors, impellers, fans, flywheels, clutches, gears, pulleys, and brake drums. By correcting unbalance, they help reduce vibration, extend service life, and keep production running more smoothly.

Balancing machines can be configured with belt drive, universal joint drive, or self-drive. Belt drive is usually chosen for smaller rotors that require accuracy, while universal joint drive delivers higher torque and is safer for heavier parts. Self-drive designs are used when the workpiece can rotate under its own power.

Accuracy may be affected by operator handling, incorrect markings, or mismatched correction points. Technical issues such as damaged sensors, loose connections, or electronic failures can also play a role. Regular calibration and proper setup help keep results consistent.
