Abrasive Wear Testing Machine
  • Abrasive Wear Testing Machine
  • Abrasive Wear Testing Machine

    • ML-100

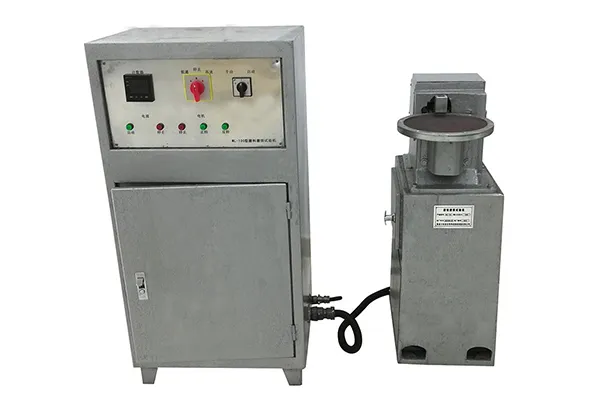

    Abrasive Wear Testing Machine

    Abrasion tester for determining the abrasion resistance of metals by rubbing the specimen against abrasive sand paper

    The abrasive wear testing machine is designed to determine the wear resistance of metallic materials by rubbing specimens against abrasive sandpaper. It accurately simulates real service conditions to provide reliable evaluation of material durability.

    The metal abrasion tester allows adjustment of key parameters such as load, speed, and test duration, making it adaptable for different materials and operating conditions. This ensures comprehensive testing across a wide range of wear scenarios.

    Request a Quote
    Specifications
    Test force 2-100N (1N per unit, 2N for clamping specimen)
    Rotation speed 60/120 r/min
    Specimen feed 1/2/3/4mm
    Specimen diameter 2/3/4mm
    Counting control range 0-9999999 (automatic stop at preset number of rotations)
    Specimen stroke Scale 10 to 110mm
    Abrasive sand paper diameter 260mm
    Applications

    Suitable for measuring the abrasion resistance of metals in environments where solid particles such as ore, sand, or slurry cause wear. Test results provide valuable data on the durability of various metals and support abrasive wear mechanism research, making it an essential tool for industries involved in mining, construction, and materials development.
    Related Wear Testing Machine
    Get in Touch

    The abrasive wear tester introduces external abrasive media such as quartz sand or alumina powder. This makes it more representative of working conditions in mining, agricultural machinery, and construction equipment, where abrasive particles are present.

    Three main abrasive wear modes are supported:

    • Dry sand rubber wheel wear test
    • Wet sand abrasive wear test
    • Impact abrasive wear test

    The abrasive wear testing machine is suitable for metals, plastics, rubbers, coatings, ceramics, and composite materials. It is widely used in the automotive, aerospace, electronics, machinery, and building materials industries, covering most common material testing requirements.

    The ML-100 abrasive wear testing machine is recommended. It simulates solid wear conditions such as ore and sand. Adjustable parameters include load, speed, and test duration. It provides quantitative evaluation of metallic wear resistance and supports abrasive wear mechanism research. It is widely applied in mining machinery and building material industries.

    The MLG-130 abrasive wear testing machine (dry sand/rubber wheel test) is suitable. By adjusting the composition of the slurry medium, it can simulate wet sand conditions. With variable rubber wheel speed and normal pressure, it recreates working conditions of agricultural and mining equipment in mud or ore environments. It also supports water or other liquid media, making it a versatile choice for material selection and wear mechanism studies.

    The MLS-225 abrasive wear testing machine is designed for wet abrasive wear tests. It uses sliding friction with a rubber wheel to drive a mixture of ore particles, sand, and water against the sample. This setup accurately simulates mining and transport machinery operating in wet abrasive environments and is suitable for testing both metallic and non-metallic materials for wear strength and durability.
