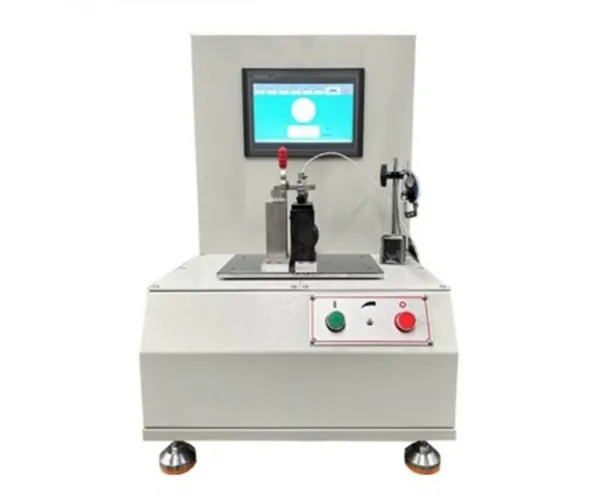

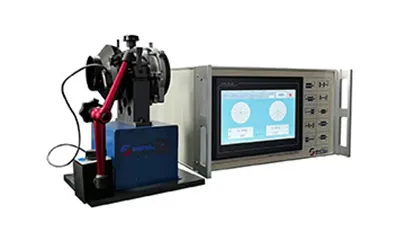

ZY-5 Hard-Bearing Balancing Machine (Self Drive)
  • ZY-5 Hard-Bearing Balancing Machine (Self Drive)
  • ZY-5 Hard-Bearing Balancing Machine (Self Drive)

    • ZY-5

    Horizontal Balancing Machine

    Hard-bearing balancing machine (self drive) for workpieces with diameter of up to 350mm and weight of 0.5-5kg

    • Hard-bearing balancing machine ideal for balancing small, high-speed components such as cooling fans.
    • Self-drive design uses the rotor’s own power, removing the need for external drive devices.
    • Workpieces can be tested directly without taking them apart, which makes the process quicker and easier.
    • Compact design supports workpieces up to 5 kg while ensuring stable operation and reliable performance.
    • Equipped with a high-sensitivity measuring system, achieving unbalance resolution within 0.3 g·mm/kg for precise results.
    Applications

    Designed for cooling fan blades and coil fans, this model provides accurate dynamic balancing to improve stability and extend service life.

    Request a Quote
    Specifications
    Workpiece weight 0.5-5kg
    Max. workpiece diameter Ø350mm
    Min. distance between two bearings 30mm
    Max. distance between two bearings 500mm
    Journal diameter of workpiece Ø3-Ø24mm
    Balancing speed 180-20000r/min
    Min. achievable residual unbalance (eMar) ≤0.3g.mm/kg
    Unbalance reduction ratio (URR) ≥90%
    Dynamic balancing measuring system ZL-220 (digital display type) ZL-210 (touch screen type)
    Examples of Workpieces Our Machines Can Balance

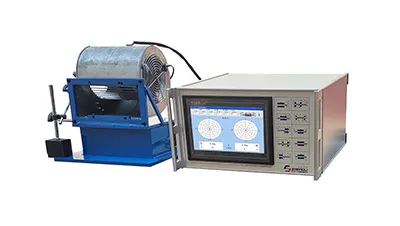

    • Air conditioning fan impellerssAir conditioning fan impellerss
    • Cyclonic wheel rotorsCyclonic wheel rotors
    Features
    • The digital display shows the operating speed, support mode, and both the magnitude and phase of the correction.
    • Includes a built-in self-diagnosis function that accurately detects faults.
    • It can store size parameters for up to ten different workpiece specifications, to switch between parts without repeated input.
    • An indexing function helps locate unbalance positions quickly on workpieces that cannot be machined at any angle.
    • Calibration and fixture eccentricity compensation ensure greater accuracy during random inspections and adjustments.
    • Users can choose whether to correct unbalance by adding or removing weight.
    • The balancing machine can produce standard electrical rotors, which makes it easier for users to perform their own checks and adjustments.
    • An optional panel printer allows real-time printing of balance reports.
    • An automatic positioning system is also available as an option.
